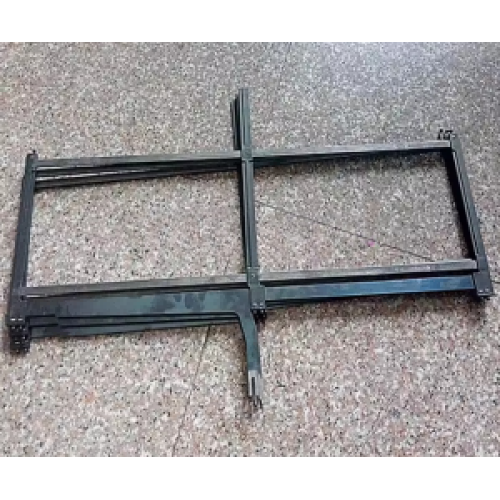

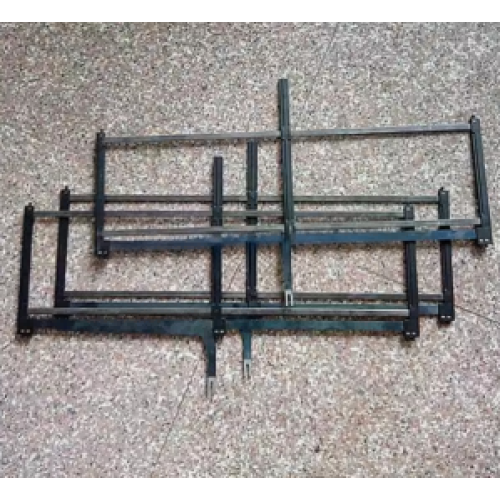

heald frame support 62.8cm
heald frame support 62.8cm
heald frame support 62.8cm
   0 reviews  |  Write a review
Product Code: Ribbon loom
Availability: In Stock

Function


  • Support and Positioning: It is a key component for supporting and fixing the heald frame, ensuring that the heald frame maintains an accurate position and attitude during the operation of the ribbon weaving machine. This enables the heald frame to move up and down as designed, providing a stable foundation for the layering and opening of the warp yarns.
  • Power Transmission: In the power transmission system of the ribbon weaving machine, it plays the role of transmitting power from the driving mechanism to the heald frame. This allows the heald frame to move regularly under the drive of power, realizing the alternating opening and closing of the warp yarns, so that the weft yarn can shuttle and interweave into a ribbon.
  • Stroke Adjustment: The heald frame supports of some ribbon weaving machines have an adjustment function. According to different varieties, specifications and process requirements of the ribbons, the stroke of the heald frame can be adjusted, that is, the range of the up and down movement of the heald frame, so as to meet the production needs of different types of ribbons.
